BS5163 DIN F4 F5 Resilient Seat Water Pipeline Gate Valve Dn1300 sluice Valve

Write a review

1) Product information: The gate valves supplied are mainly used for adjusting water, Steam, oil, gas, and natural gas in chemical industries

2) Standards: AWWA, DIN3352 F4/F5, BS5163, BS5150

3) Connection type: Flanged type

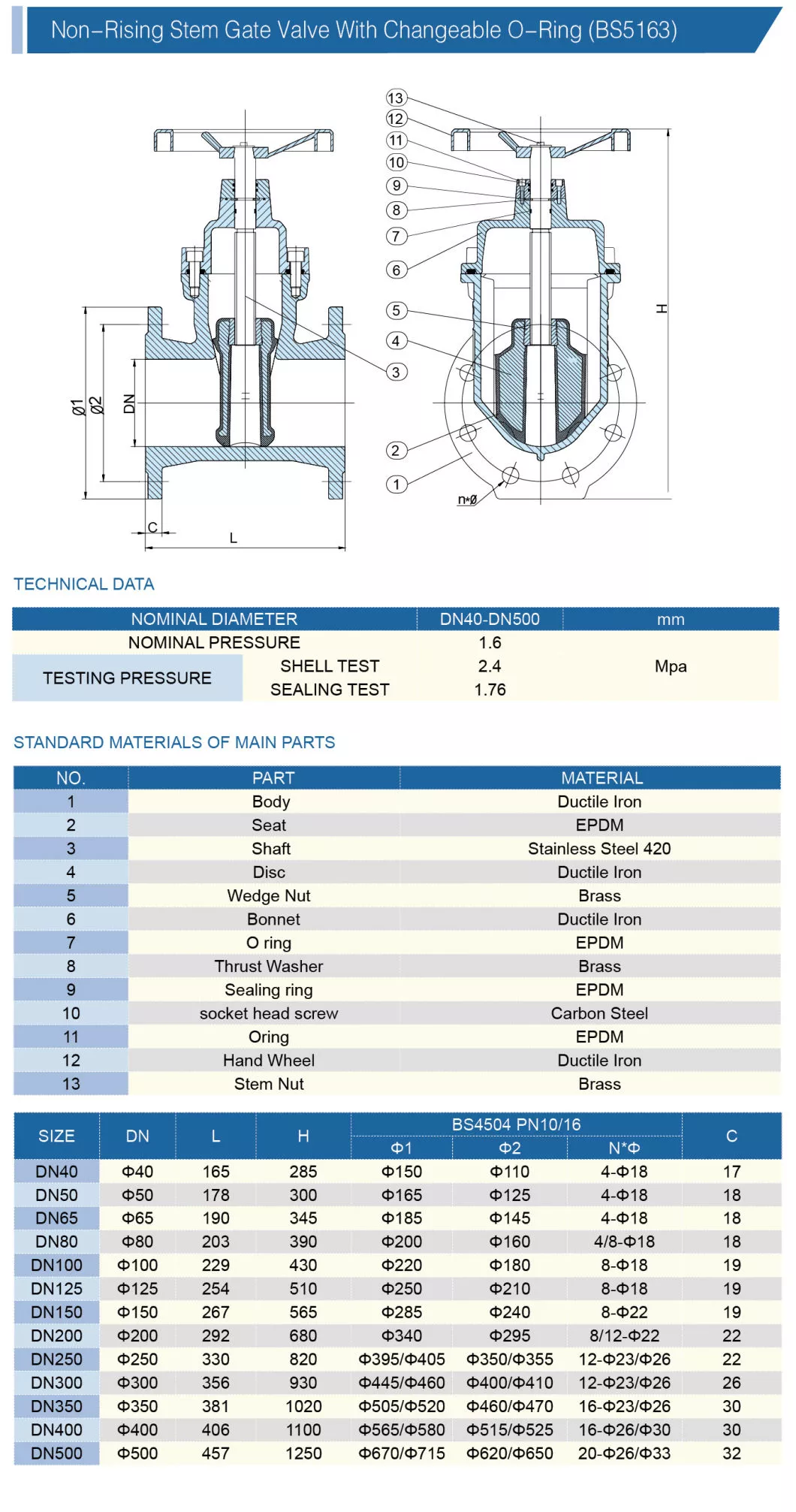

STANDARD MATERIAL OF MAIN PARTS
NO. PART MATERIAL
1 Body Cast Iron, ductile iron
2 Seat NBR,EPDM, Viton,Neoprene,HYPALON,Silicon
3 Shaft Stainless Steel416,316,304
4 Disc Ductile Iron+Ni,CF8,CF8M,Bronze
5 Pin Cast iron
6 Bushing PTFE,Bronze
7 O-Ring NBR
